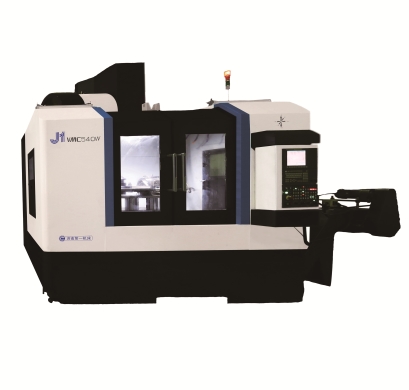

J1VMC540W Precision Vertical Machining Center
View:
High-speed, high-efficiency, high-precision, FANUC system. ?? J1VMC540W vertical machining center is Jinan No.1 Machine Tool Co., Ltd. to meet the needs of high-speed, high-efficiency, and precision vertical machining centers in the aerospace defense industry, IT industry, precision instruments, small and medium-sized cabinets, hubs, mold manufacturing and other machining industries. A newly developed high performance product. ?? Especially optimized for wheel hub machining, it has been put into production in large quantities and has won praise from customers.
J1VMC 540H/W Vertical Machining Center Main Technical Specifications (Standard Configuration)
|
項目Item |
J1VMC540H |
J1VMC540W |
|
工作臺面積(長x寬)（mm×mm）Table size(LxW) |
1200×540 |
|
|
主軸鼻端至工作臺距離（mm）Distance from spindle nose to table |
150-660 |
350-1060 |
|
主軸最高轉速（r/min）Spindle speed |
80-8000 |
|
|
主軸電機（KW）Spindle motor |
β15（ 15/18.5 kW） |
α15（ 15/18.5 kW） |
|
主軸孔錐度Spindle taper |
7/24 |
|
|
主軸中心至立柱軌面距離 （mm）Distance From spindle center to column guide |
597 |
|
|
刀庫容量Magazine storage |
24 |
|
|
X/Y/Z移動范圍（mm）Travel of X/Y/Z axis |
1020/580/510 |
1020/580/710 |
|
X/Y/Z快速移動速度（m/min） Rapid traverse rate of X/Y/Z axis |
36/36/30 |
|
|
數(shù)控系統(tǒng)CNC system |
FANUC 0i-MF |
|
